The Soundtrakker

The Soundtrakker, as the name suggests, is a tracker-like music program (it uses a scrolling list of notes to play, rather akin to an old-fashioned piano roll, instead of a musical score) programmed by BSC (Oliver Mayer) and distributed by New Age Software (aka NAS), Sentinel Software (in the UK) and Weeske (a well known Amstrad reseller in Germany) in 1992.

This software quickly became the most popular music tool in the CPC demoscene back then. It was much more powerful and yet easier to use than any other CPC music program at that time (and it remained so until, a decade later, STarKos appeared in 2004. What? Of course this is an Arkos propaganda! :). Released as a commercial software, it didn't sell very well. The CPC in 1992 was dying (commercially speaking) and it also suffered alot of piracy in the scene (Hello POW!). It finally ended up as freeware.

We had the cpc-game-music-rip-in-demos era and then we had the soundtrakker-everywhere music era :)

Soundtrakker 1.x

Released
1992
Requirements
64Kb RAM
DDI-1 (or compatible)
File extensions
.SNG (song read/write)
.INS (instrument read/write)

Downloads

Manuals

Soundtrakker 128

Released
1993
Requirements
128Kb RAM
DDI-1 (or compatible)
File extensions
.128 (song read/write)
.SNG (song read only)
.INS (instrument read/write)

Downloads

Manual

WANTED: Manual?

The Soundtrakker v1.0 is said to be quite bugged and was quickly updated to a much better v1.1.
The Soundtrakker 128 is a real update of the program, featuring new effect-commands and improvements. It's not just a 128K RAM extended version! Unless you intend to compose music on your rusty 464, it should be your prefered version of the Soundtrakker.

Various Soundtrakker stuff (stk1.1 manual, songs, 3rd party software) provided by CPCManiaco (thanks!).

Compatibility

The soundtrakker 128 can read the .SNG created with the Soundtrakker 1.x, but they can be messed up if they are using very short patterns.

Soundtrakker 1.x can not read the .128 song files created with the Soundtrakker 128.

ParaDOS (or any similar extended DOS) users, be careful: the disc operations of the Soundtrakker only support up to 64 files per directory. If there's more than 64 files on the disc (eg. using extended disc formats or hard-drive) then an overflow of the directory buffer will crash the program.

Video / Screenshots

(If Flash is installed JavaScript is activated, you can watch a video inside this web page.)

The Soundtrakker 128 playing “Space Debris” by BSC,
a great cover of an Amiga music by Captain.

Video recorded with WinAPE.
Sound recorded from a real CPC 6128.

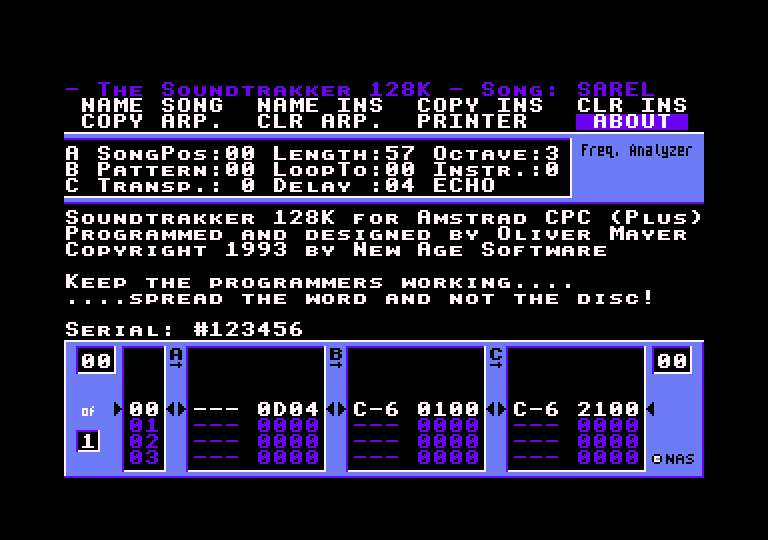

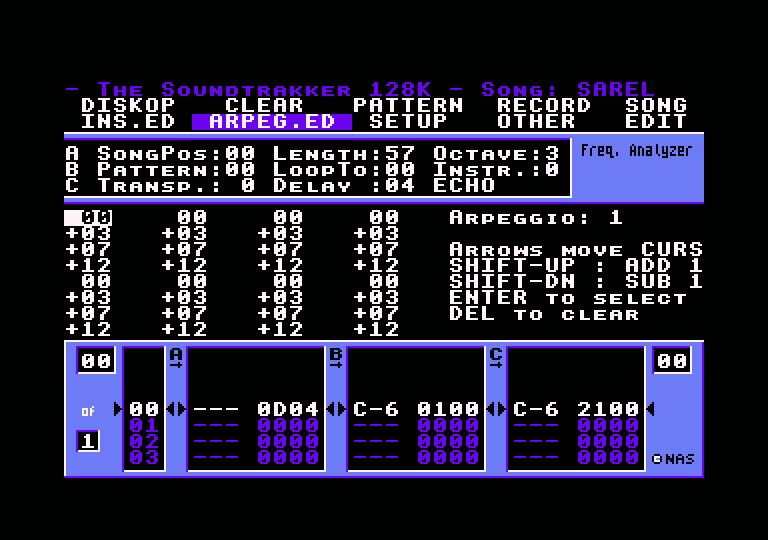

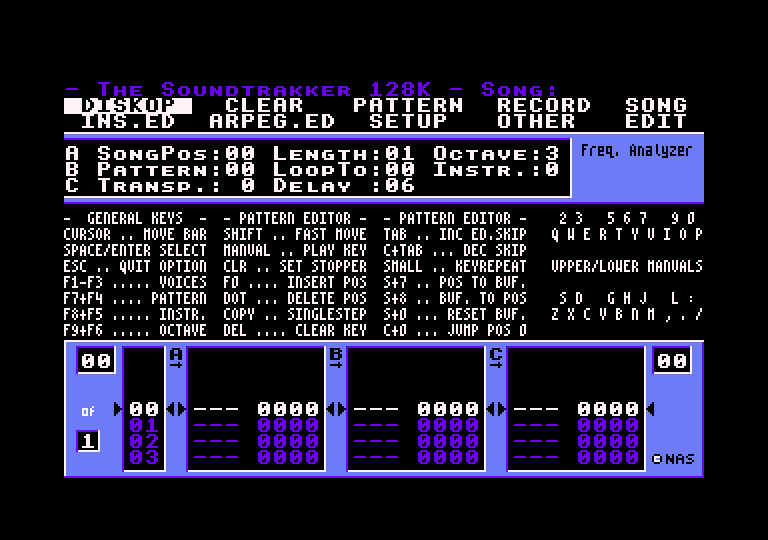

Soundtrakker 128Soundtrakker 128: Arpeggio editor.Soundtrakker 128: Disc Operations.Soundtrakker 128: Instrument Editor.Soundtrakker 128: The main screen.Soundtrakker 128: Songlist editor.

Developpers

Programming

Third party software

Several tools dedicated or providing features related to the Soundtrakker exist. Here are a few of them.

The Soundtrakker Player

The Soundtrakker Player v1.4 by Tom & Jerry / GPA

Infos
Freeware by Tom & Jerry/GPA, 2003.
Description
Handy little tool to play almost any CPC music and also have support for playlist!
Download
TSP1.4 with some music (DSK).
A ROM version also exists, see Soundtrakker128 downloads above.

ST-Crime

ST-Crime v1.0 by AsT

Infos
Shareware by Ast, 1995.
Description
Decompile a Soundtrakker compiled module into a .128 source file.
Download
ST-Crime v1.0 (DSK)

X-Convert

X-Convert v1.1 by AsT

Infos
Shareware by Ast, 1995
Description
Converts Protracker, Digitracker or Equinox files into Soundtrakker 128 source file (only the songlist and pattern, not the instruments).
Download
X-Convert v1.1 (DSK)

Convert Soundtrakker to YM

Soundtrakker128 to YM Converter

Infos
Someware by someone, somewhen.
Description
Convert a compiled STK tune into an uncompressed YM/AY registers dump.
CAUTION: It requires alot of space on the disc (use ParaDOS with a 3.5”) and alot of time too (the music have to be played 13 times, use some emulator with 1000% speed or something :).
Download
STK2YM (DSK)

Soundtrak Ripper 2.0b

Soundtrak Ripper 2.0b by STS Software

Infos
Freeware by STS Software, 1993.
Description
Search for and hack compiled Soundtrakker music in any program.
Download
Soundtrak Ripper (DSK)

SoundHakker Professionnal 3.0

SoundHakker Professionnal 3.0 by STS Software

Infos
Freeware by The Equalizor/STS Software, 1993.
Description
Search for and hack compiled Soundtrakker music in any program.
Can also be used with a Multiface Two.
Download
SoundHakker Professionnal 3.0 (DSK)

Song Repository

I'm still searching/gathering music files at the moment, but instead of locking what I already have in my hard-drive until I sort them all (which might take a while), here they are! So you can help me sorting them now! :)

If you have any .SNG or .128 files, please, send them to me and I will update this repository! (I'm especially looking for the Megablaster tunes by Crittersoap, I can't find the disc where I have them… arg!).

Soundtrakker 1.x

Soundtrakker 128
